The 3-Position Doughty Tank Trap / Boom Base was awarded the ABTT Engineering Product of the Year Award in 2017. With great anticipation, we now bring it to market in the Americas and look forward to the customer response following the success the product has seen in Europe.

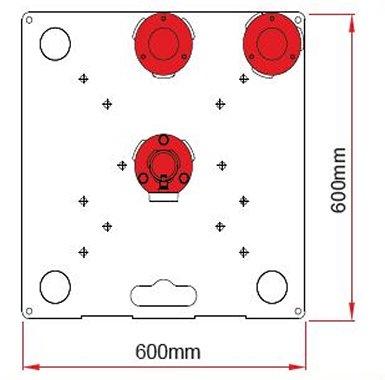

It is a multipurpose floor plate used to secure 2'' diameter barrels, poles or trusses upright. One boom base can support up to 3 poles on the positions indicated in the diagram. The barrel/s can then be used to suspend loads such as lighting fixtures, video projectors, sound systems, set pieces etc. This tank trap can be used as a standalone system or as a part of a larger installation.

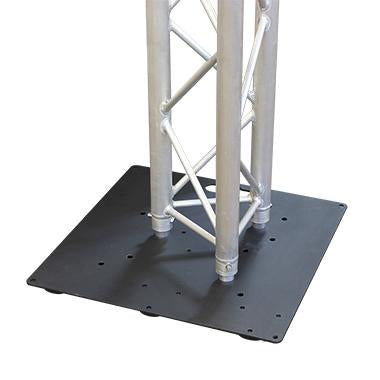

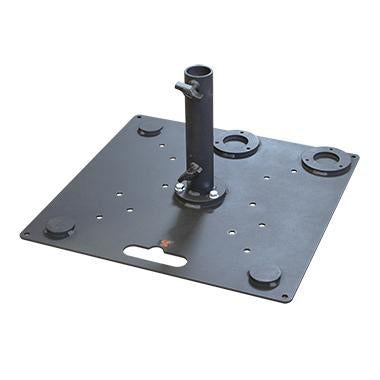

This tank trap is fitted with a detachable receiver which may be screwed in the center, at the edge, or in the corner of the plate. With the receiver removed, the plate may be inverted and used as a base plate to suit various sizes of the truss. It does not include truss connectors or fixings to mount the truss to the plate.

Downloads:

User Manual

Key Features:

• Used in conjunction with poles or truss
• 3 poles can be supported on a single boom base for lighting
• Tank traps can be used individually or as part of a larger installation
• Allow compact stacking for easy transport and storage
• Detachable receiver can be positioned in center, edge, or corner of the plate

Specifications:

• Boom Base Dimension: 2ft x 2ft
• Weight: 40.12 lbs
• Height: 12'' including the thickness of the plate
• Receiver accepts 2'' diameter aluminum barrel or galvanized scaffold pole
• 12 holes (0.53'' diameter) on the plate for truss mounting when inverted

References:

• Tank Trap Dolly
• MTN Shop Blog - Doughty Tank Traps
•

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. Quality and safety are key issues for Doughty. As a member of PLASA (Professional Light and Sound Association) and ESTA (Entertainment Services and Technology Association), Doughty adheres strictly to the standards of trading expected.
