Doughty Atom Beamer Clamp

Doughty Atom Beamer Clamp

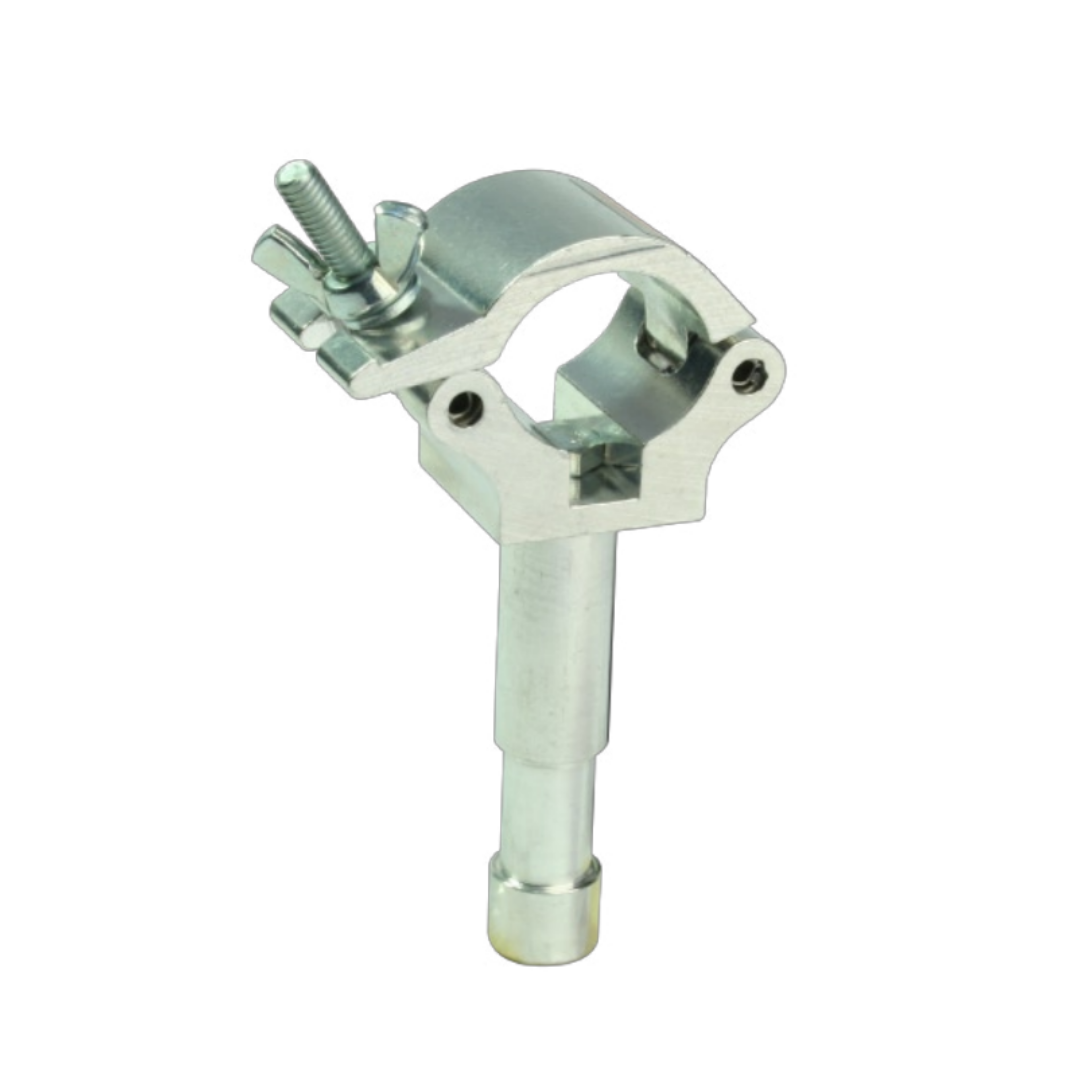

This Doughty Atom Beamer Clamp, manufactured from Aluminum Extrusion enables users to create fixings suited to their own individual requirements.

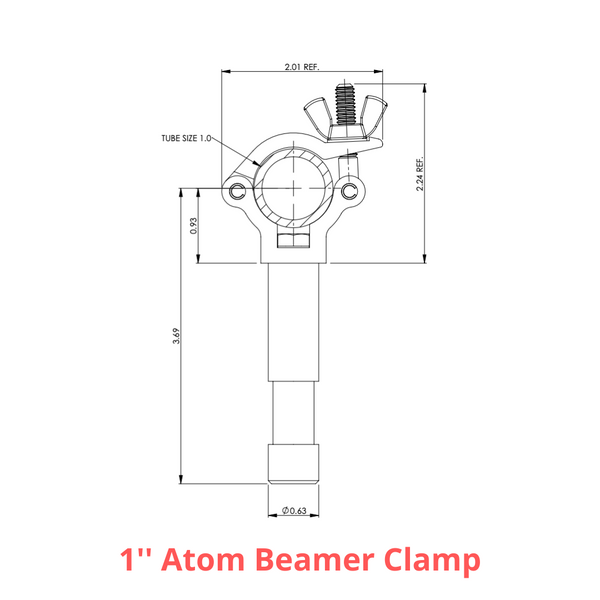

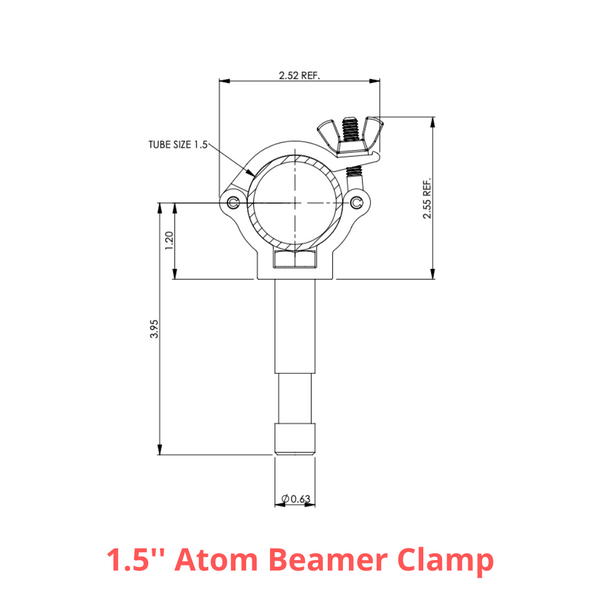

This truss clamp, available in sizes to fit 1'' and 1.5'' diameter tubes, can attach to round tubes or truss chords and suspend luminaires or other equipment in the theatre, film, TV and photographic industries.

Available in Powder Painted Black or Polished Aluminum, these Atom Clamps are also supplied fitted with a 0.63'' diameter Lighting Pin.

Downloads:

User Manual

Key Features:

• Manufactured from high-quality Aluminum Extrusion
• Designed for customized rigging solutions in entertainment industries
• Compatible with 1'' and 1.5'' diameter tubes or truss chords
• Includes a 0.63'' diameter Lighting Pin for secure fixture mounting
• Available in Black Powder Coated or Polished Aluminum finish

Specifications:

• SWL: 220 lbs
• Tube Diameters: 1'' & 1.5''
• Fixings: ⌀0.63'' Lighting Pin
• Material: Aluminum
• Finish: Black Powder Coated or Polished Aluminum

References:

• Doughty Atom Beamer Clamp - User Manual
• Doughty Atom Beamer Clamp - Spec Sheet
• Doughty Engineering is a UK-based manufacturer and member of ESTA and PLASA
