Doughty Pink Eye Clamp - 2'' Diameter Hanging Clamp

Doughty Pink Eye Clamp - 2'' Diameter Hanging Clamp

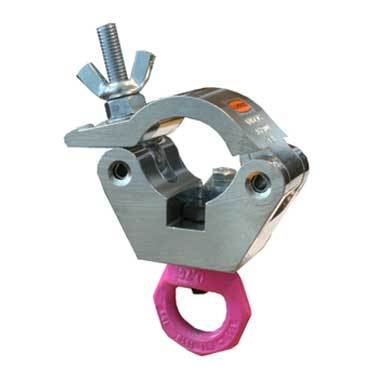

The Doughty Pink Eye Clamp is a high-performance hanging clamp designed for secure and reliable suspension of equipment and luminaries in the theatre, film, TV, and photographic industries. This clamp is built to fit round tubes or truss chords and is based on the trusted Doughty Clamp design.

Fitted with an articulated M12 Pink Eye Nut, this clamp offers a superior Safe Working Load (SWL) of 1653.5 lbs. The Pink Eye is manufactured from high tensile forged materials, annealed, and fully electromagnetic crack detected to meet EN 1677-1 standards.

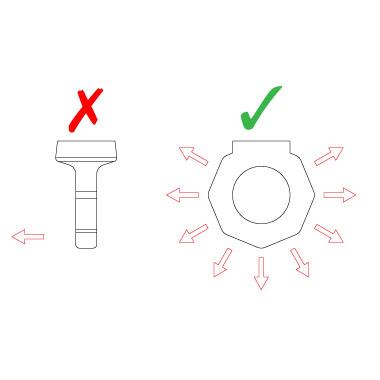

Unlike standard Eye Nuts, the Pink Eye allows for use in unfavorable load directions (not permissible for DIN 580), making this clamp an exceptionally robust and dependable rigging solution.

Downloads:

User Manual

Key Features:

• Articulated M12 Pink Eye Nut for enhanced load direction versatility
• SWL of 1653.5 lbs for heavy-duty applications
• Manufactured from high tensile forged and annealed materials
• Electromagnetic crack detection compliant with EN 1677-1
• Compatible with round tubes or truss chords in entertainment setups

Specifications:

• SWL: 1653.5 lbs
• Tuber Diameters: 1.9'' - 2''
• Width: 1.97''
• Weight: 1.98 lbs
• Material: Aluminum

References:

• Spec Sheet
• User Manual
• Cert

Doughty Engineering, established in 1985 in the UK, is a globally recognized manufacturer of rigging, suspension, and lifting equipment for the entertainment industry. As a member of ESTA and PLASA, Doughty ensures the highest standards of quality and safety in every product.
