Doughty Heavy Duty Triple Sheave Pulley

Product No. T42903

Regular price $351.93 $351.93
SIZE
USE
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

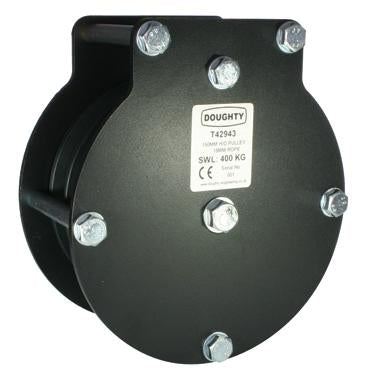

Doughty Heavy Duty Triple Sheave Pulley


The Doughty Heavy Duty Triple Sheave Pulley is engineered for demanding lifting and rigging applications in the theatre, film, and television industries. Designed with a modular construction, it allows for easy assembly using a minimal set of standard components, offering flexible integration into a variety of rigging setups.

Constructed with high-strength 0.2'' thick steel side plates and nylon sheaves equipped with ball raced bearings, this pulley system ensures smooth, friction-free operation and exceptional load handling capacity. Available in 4'', 6'', and 8'' diameters, it supports working load limits (WLL) of 441 lbs, 882 lbs, and 1323 lbs respectively, making it suitable for both fibre and wire rope systems.

Whether you're lifting set pieces or managing overhead rigging, the Doughty Triple Sheave Pulley delivers reliable strength and smooth motion for professional-grade performance.


Downloads:

User Manual



Key Features:

  • Triple sheave design for efficient load distribution and rope management
  • Constructed with 0.2'' thick steel side plates for maximum durability
  • Nylon sheaves with ball raced bearings for smooth, friction-free operation
  • Compatible with both fibre and wire ropes
  • Modular design allows easy configuration using standard components


Specifications:

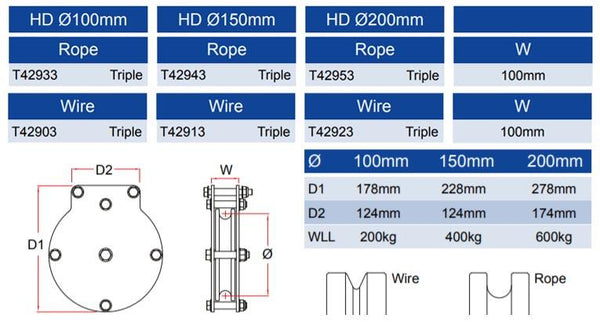

  • Sheave Dimensions & WLL: 4'' (441lbs), 6'' (882lbs), and 8'' (1323lbs) Diameter
  • Recommended Rope/Wire Sizes:
    4'' Sheave – 0.5'' Rope or 0.16'' Wire
    6'' Sheave – 0.7'' Rope or 0.24'' Wire
    8'' Sheave – 0.7'' Rope or 0.24'' Wire
  • Width: 4'' (Same for all sizes)
  • Suitable for theatre, film, and TV industry rigging applications
  • Available in Single, Double, Triple, Quad, and Quin Sheave versions


References:


Doughty Engineering, established in the UK in 1985, is a globally recognized manufacturer of rigging, suspension, and lifting equipment for the entertainment industry. As a member of PLASA and ESTA, Doughty upholds the highest standards of quality and safety in every product they produce.
