Doughty Solid Hanging Truss Adapter (Aluminum)

Doughty Solid Hanging Truss Adapter (Aluminum)

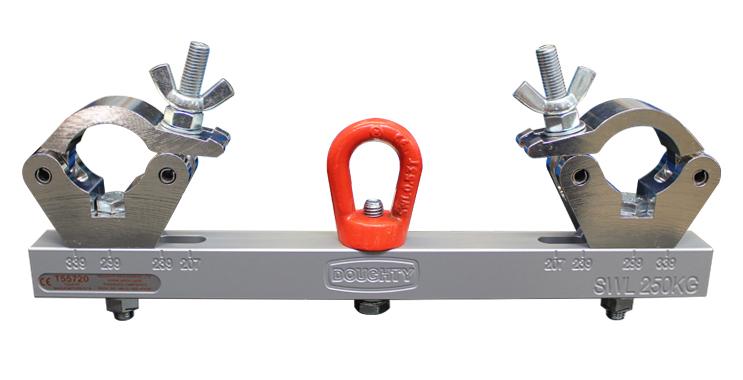

The Doughty Solid Hanging Truss Adapter is engineered to offer a secure and reliable method for lifting truss systems in professional rigging environments. Designed and manufactured by Doughty Engineering, this adapter ensures maximum safety and efficiency in overhead suspension applications.

Constructed from high tensile 6082-T6 solid aluminum, the adapter features a robust design with a built-in 'Bow Nut' for compatibility with larger hooks. Its slotted body allows for minor adjustments during installation, enhancing its versatility on-site.

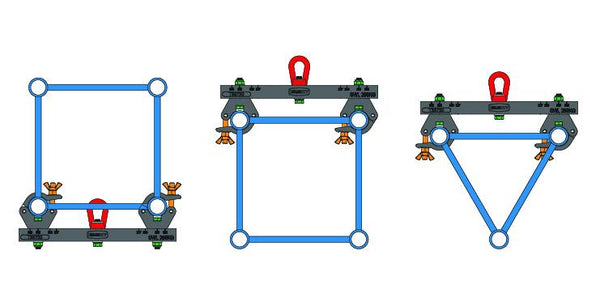

Pre-drilled to accommodate most major truss brands, the adapter comes pre-fitted with two Slimline Doughty Clamps. Available in both Medium and Heavy-Duty versions, this adapter is ideal for a wide range of rigging setups. For custom truss requirements, adapters can be drilled to suit your specifications.

Downloads:

User Manual

Key Features:

• High tensile 6082-T6 solid aluminum construction
• Pre-drilled to fit most major brands of truss
• Includes two Slimline Doughty Clamps
• Bow Nut design accommodates larger hooks
• Available in Medium and Heavy-Duty versions

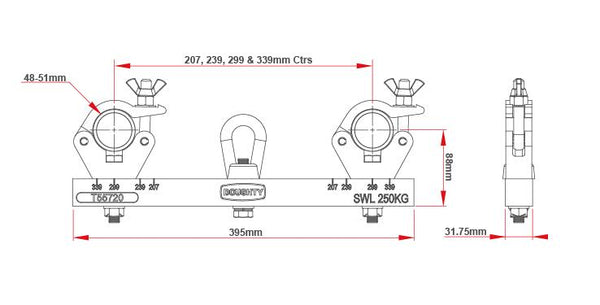

Specifications:

• SWL: 250 Kg
• Tube Diameters: 48mm to 51mm
• Truss Sizes: 207, 239, 299 & 339mm Ctrs
• Bow Nut ID: 25 x 40mm
• Weight: 4.0 Kg
• Material: Aluminum

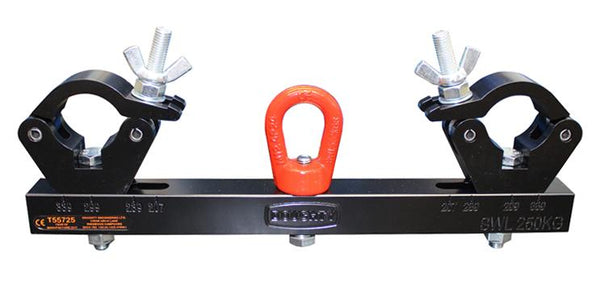

• Finish: Black or Polished Aluminum

References:

• Manufactured by Doughty Engineering
• Supplied pre-fitted with Slimline Doughty Clamps
• Custom drilling available for specific truss requirements

We can supply Truss Adaptors drilled to suit your truss requirements
