Doughty TV Clamp

Doughty TV Clamp

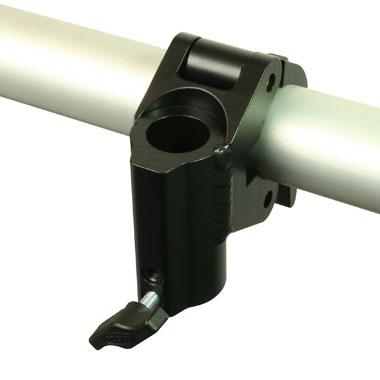

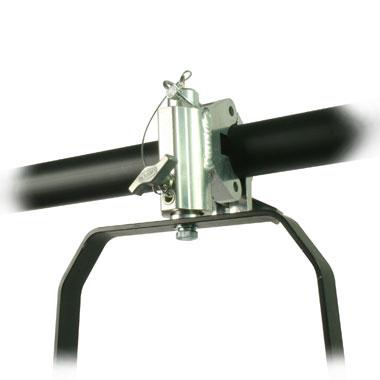

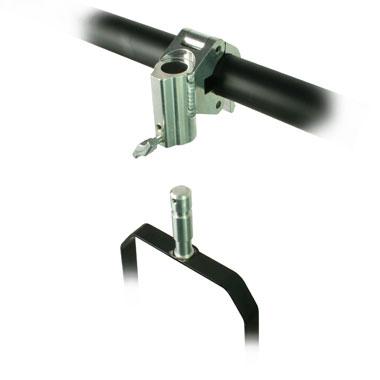

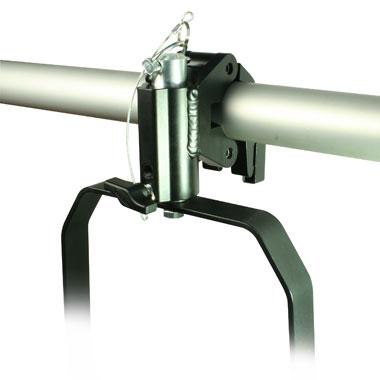

The Doughty TV Clamp is fitted with a 1.1'' diameter Receiver, and is supplied with a lynch pin for secondary locking.

This Doughty Clamp is designed predominantly for use in the TV/Film industry. It is manufactured from high tensile Aluminum Extrusion, and is available in Black or Polished Aluminum.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Fitted with a 1.1'' diameter Receiver
• Includes lynch pin for secondary locking
• Constructed from high tensile Aluminum Extrusion
• Ideal for professional TV and Film rigging applications
• Available in Black or Polished Aluminum finish

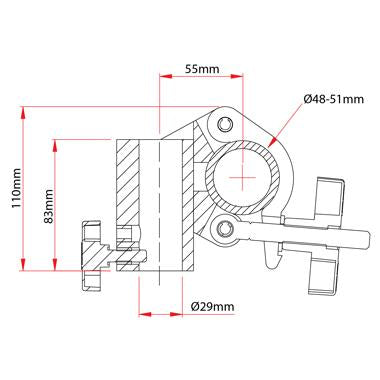

Specifications:

• SWL: 551 lbs
• Tube Diameters: 1.9'' - 2''
• Width: 2''
• Fixings: 1.1'' Receiver
• Weight: 2 lbs
• Material: Aluminum
• Finish: Black or Polished Aluminum

References:

• Doughty Engineering - UK-based manufacturer established in 1985
• Member of ESTA (Entertainment Services and Technology Association)
• Member of PLASA (Professional Light and Sound Association)

Doughty Engineering is one of the world’s leading manufacturers of rigging, suspension, and lifting equipment for film/TV, theatre, and concert halls. Committed to quality and safety, Doughty adheres to the highest industry standards.
