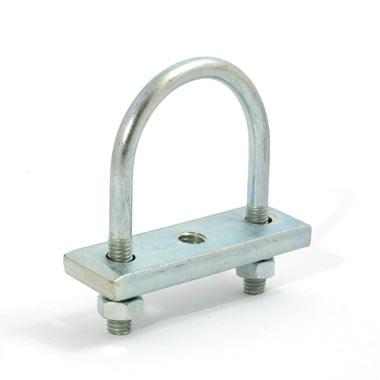

Doughty U Bolts with Plates

Doughty U Bolts with Plates

The Doughty U Bolts with Plates are high-quality clamping components designed to securely hold two parts together. Featuring a classic round bend shape, these U bolts are ideal for mounting pipes or steel round bars to round wood or steel posts across a wide range of rigging and structural applications.

Manufactured and tested in the Doughty UK factory, these U bolt clamps are engineered with precision and quality assurance. Available in two dimensions to accommodate different tube sizes, they offer reliable performance in demanding environments.

Constructed from durable steel and finished with a zinc plating, these U bolts integrate seamlessly with various support tools such as Heavy Duty Multibeam Brackets and Standard Wall Brackets. Optional threaded plates (M10 and M12) provide added flexibility for specialized setups. For any inquiries, please contact us via chat.

Downloads:

1-1/4 inch Specification
2 inch Specification

Key Features:

• Provides strong clamping force for secure fastening
• Round bend shape optimized for pipe and round bar applications
• Manufactured and tested in the Doughty UK facility
• Compatible with Heavy Duty Multibeam Brackets and Standard Wall Bracket
• Optional M10 and M12 threaded plates available for extended use

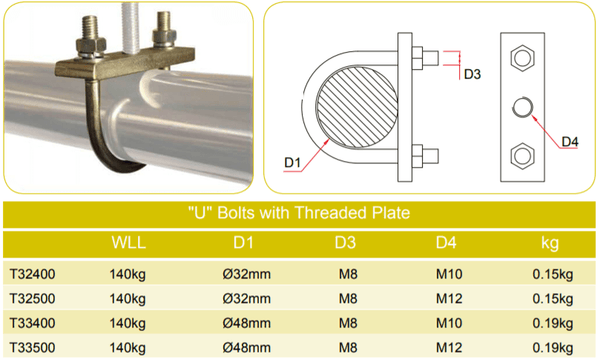

Specifications:

• Tube Diameters: 1-1/4 inch & 2 inch
• Thread Size: M8
• Thread Length: 1.2''
• Material: Steel
• Finish: Zinc Plated

References:

• Manufactured by Doughty Engineering, UK
• Member of ESTA and PLASA associations
• Trusted in film/TV, theatre, and concert hall installations since 1985

Doughty Engineering is recognized globally for its expertise in rigging, suspension, and lifting equipment. With a strong commitment to safety and quality, Doughty continues to set industry standards in the entertainment and production sectors.
