Motion Labs 26 Pin Hoist Remote Extension Cable
Motion Labs 26 Pin Hoist Remote Extension Cable $250.00

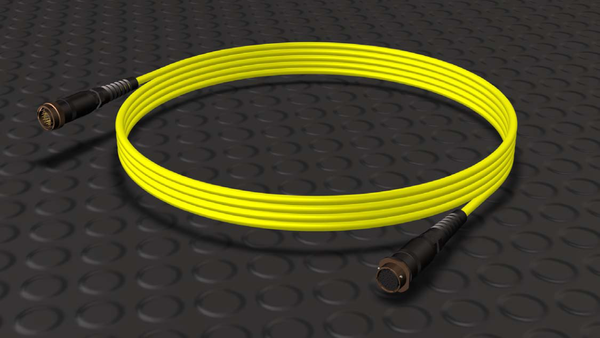

  • Coiled yellow P26 remote control cable with black circular connectors at both ends, displayed on a dark textured background.

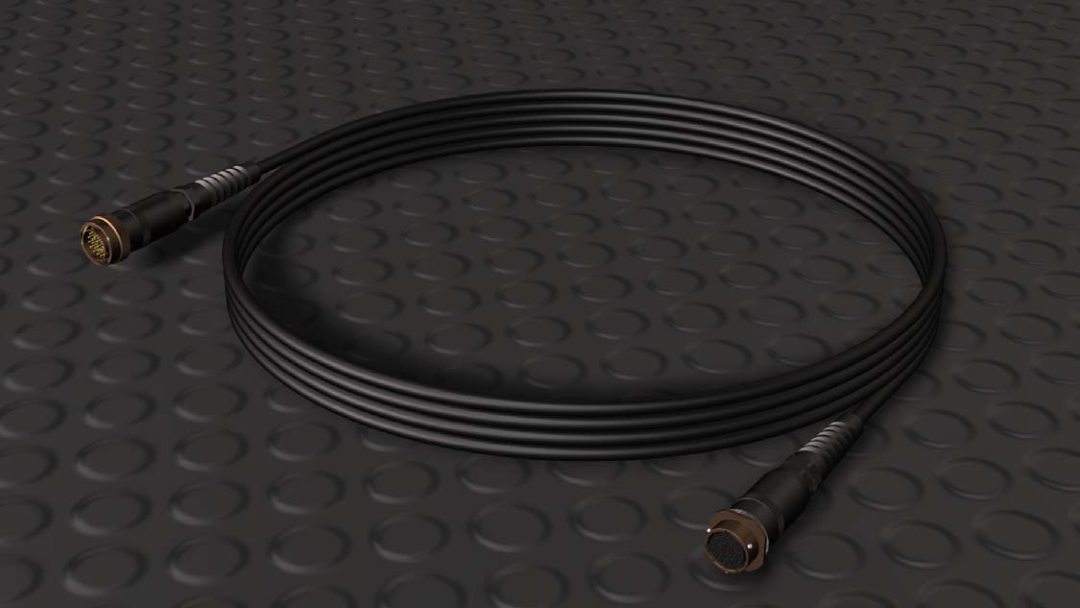

  • Coiled black P26 remote control cable with black circular connectors at both ends, displayed on a dark textured background.” - imagen 2

Motion Labs 26 Pin Hoist Remote Extension Cable

Motion Labs |
SKU: 1400-05-39-04-001
$250.00
Color: Yellow
Length: 25 ft
  • 26 x 22 AWG: 26-conductor extension cable for a hand held hoist remote, rated 300V RMS and 80°C.
  • P26 Multi-Pin Connectors: Gold-plated crimp contacts and liquid-tight PG-11 strain relief.
  • Yellow or Black PVC Jacket: Four lengths from 25 ft to 100 ft, weighing 4 lb to 16 lb.
  • Ready to Label: 6 in clear heat shrink on each end for your own labels.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Please select country
Please enter correct zip code

You may also like

Test heading

Motion Labs 26 Pin Hoist Remote Extension Cable

The Motion Labs 26 Pin Hoist Remote Extension Cable is a 26-conductor, 22 AWG control cable with P26 multi-pin connectors, used to extend a hand held hoist remote. It is rated 300V RMS and 80°C, comes with a yellow or black PVC jacket and is available in lengths from 25 ft to 100 ft.

Key Features and Highlights

  • 26 x 22 AWG Conductors: Stranded tinned copper conductors with PVC insulation, unshielded, rated 300V RMS and 80°C.
  • P26 Multi-Pin Connectors: Aluminum alloy shell with olive green cadmium plating, neoprene insulator and gold-plated crimp contacts, rated 300V RMS and 13A.
  • Liquid-Tight Strain Relief: Black nylon PG-11 straight fitting with flex nut and Delrin P-26 backshell.
  • Yellow or Black: Choose a high-visibility yellow jacket or a black jacket for discreet runs.
  • Four Lengths: 25, 50, 75 or 100 ft, weighing from 4 lb to 16 lb.
  • Ready to Label: 6 in clear heat shrink on each end for your labels.

Why Choose This Product?

An extension cable lets the operator control hoists from a better vantage point, away from the controller. Field-replaceable rear-release crimp contacts, a liquid-tight strain relief and a light 22 AWG construction make it easy to handle and maintain on tour.

Who Is This Product For?

Ideal for: riggers, production crews and rental houses who need extra reach for a hand held hoist remote.

Compatibility and Applications

Use with hoist controllers and hand held remotes that connect through a 26 pin P26 connector. Check the connector on your system before ordering. To check your remote cables before each job, Motion Labs also makes the CT-001 touchscreen cable tester for 26 pin remote cable.

Explore Motion Labs Equipment

Explore the complete Motion Labs collection for professional power distribution, chain hoist control and cable assembly equipment.

For bulk orders, project requirements or pricing, Request a Quote.

Frequently Asked Questions

What does 22/26 mean on the Motion Labs 26 Pin Hoist Remote Extension Cable?
On the Motion Labs 26 Pin Hoist Remote Extension Cable, 22/26 means 26 conductors of 22 AWG stranded tinned copper. The conductors have PVC insulation inside a yellow or black PVC jacket, and the cable is unshielded, rated 300V RMS and 80°C.
What connectors does the Motion Labs 26 Pin Hoist Remote Extension Cable use?
The Motion Labs 26 Pin Hoist Remote Extension Cable uses P26 multi-pin connectors with an aluminum alloy shell, neoprene insulator and gold-plated rear-release crimp contacts. A liquid-tight PG-11 strain relief and Delrin backshell protect the cable entry.
Is the Motion Labs 26 Pin Hoist Remote Extension Cable compatible with my hoist controller?
The Motion Labs 26 Pin Hoist Remote Extension Cable works with controllers and hand held remotes that connect through a 26 pin P26 connector. Check the remote connector on your system before ordering, or contact us to confirm compatibility.
What lengths and colors are available for the Motion Labs 26 Pin Hoist Remote Extension Cable?
The Motion Labs 26 Pin Hoist Remote Extension Cable comes in 25, 50, 75 and 100 ft lengths with a yellow or black jacket. Weight ranges from 4 lb at 25 ft to 16 lb at 100 ft, with clear heat shrink on each end.
