  • OZ Lifting USA Push Beam Trolley with Fall Protection– The Oz Lifting USA push beam trolley with fall protection is a solid yet lightweight trolley that can easily attach to most I, S and W-beams. The trolley features fall protection rated at 400lbs and is available with weight capacities of 0.5 ton and 1 ton and flange widths of 8", 12" and 16". The trolley is engineered for use with manual or powered hoists and has a zinc plated finish made in the USA. – Now available at MTN Shop US.

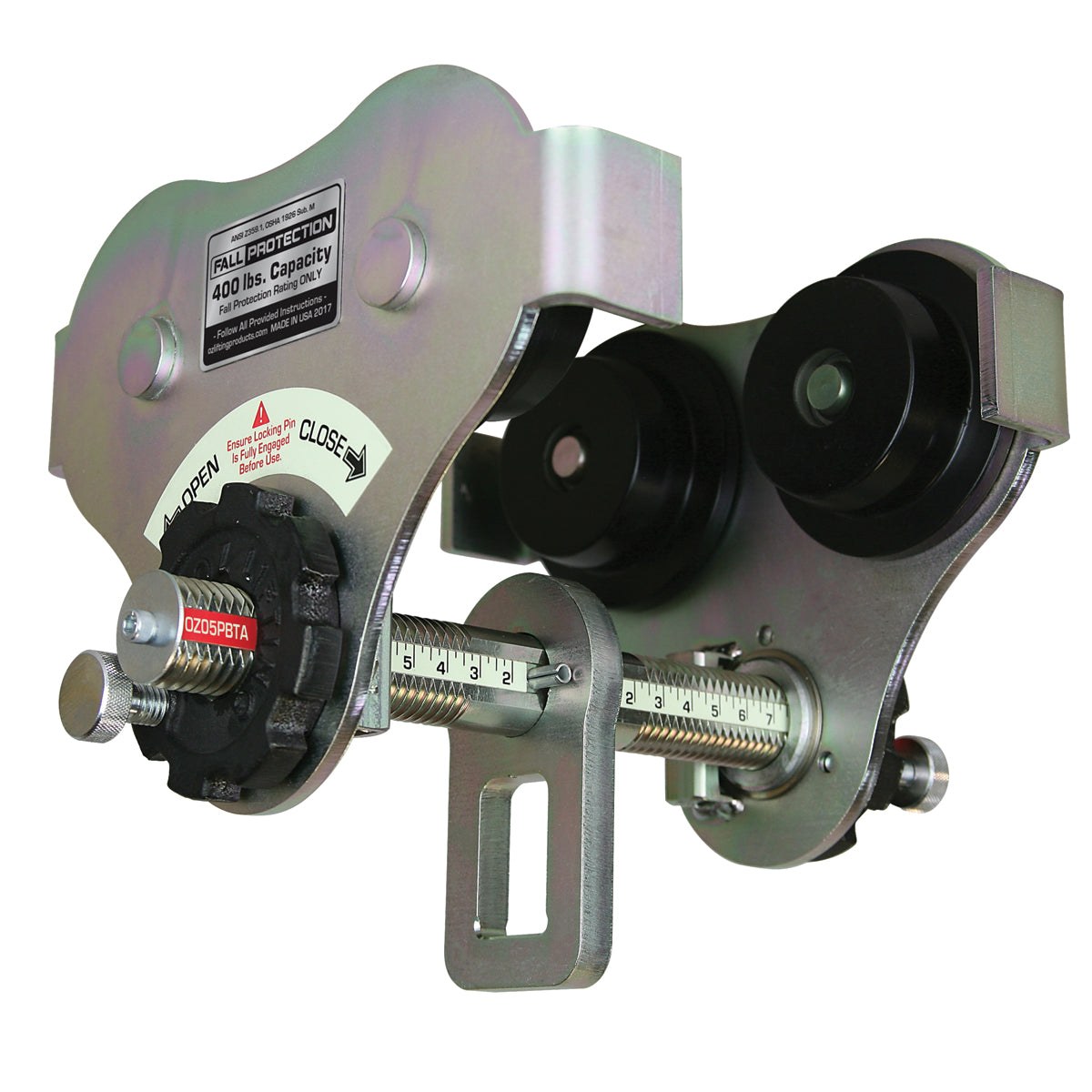

OZ Lifting USA Push Beam Trolley with Fall Protection

Product No. OZ05PBTA-MR

Regular price $609.84 $609.84
CAPACITY
WIDTH
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

OZ Lifting USA Push Beam Trolley

The Oz Lifting USA push beam trolley with fall protection is a solid yet lightweight  trolley that can with a universal wheel thread that fits most I, S and W-beams. The trolley features fall protection rated at 400lbs and is available with weight capacities of 0.5 ton and 1 ton and flange widths of 8", 12" and 16". The trolley is engineered for fall protection with premium double-sealed ball bearings and has a zinc plated finish made in the USA.


Features

  • Fall Protection Rated at 400 lbs.
  • Fast and easy width adjustments
  • Built-in width adjustment indicator
  • Universal wheel tread fits most I, S, and W-Beams
  • Premium double-sealed ball bearings
  • ROHS compliant zinc plated finish
  • Anti-drop plates
  • Glow in the dark decals
  • Ships fully assembled
  • Made in USA

Standards: This product meets or exceeds OSHA 1926 Subpart M, OSHA 1910, ASME Z359.1-2007, and ASME A10.32-2012 standards for fall protection.

PRODUCT CODE   OZ05PBTA-MR OZ1PBTA-MR
Safe Working Load (lbs)   1,000 2,000
Fall Protection* (lbs)   400 400
Adjustable Flange Width (in)   2.75-8.00 2.75-8.00
Max Flange Thickness (in)   1.12 1
  A 11 11
Product Dimensions (in) B 8.30 10.20
  C 8.50 9.80
  D 5.00 5.50
Minimum Radius Curve (ft)   2.75 3.35
Net Weight (lbs)   16 26

 WHEEL DIMENSIONS

WHEEL DIMENSIONS (in) OZ05PBTA-MR OZ1PBTA-MR
E 3.25 4.00
F 2.38 3.00

BAIL DIMENSIONS

BAIL DIMENSIONS (in) OZ05PBT-MR OZ1PBT-MR
G 3.94 4.65
H 1.50 1.97
I 0.59 0.60
J 0.95 1.21
K 1.97 2.68
L 0.40 0.48
